SGS

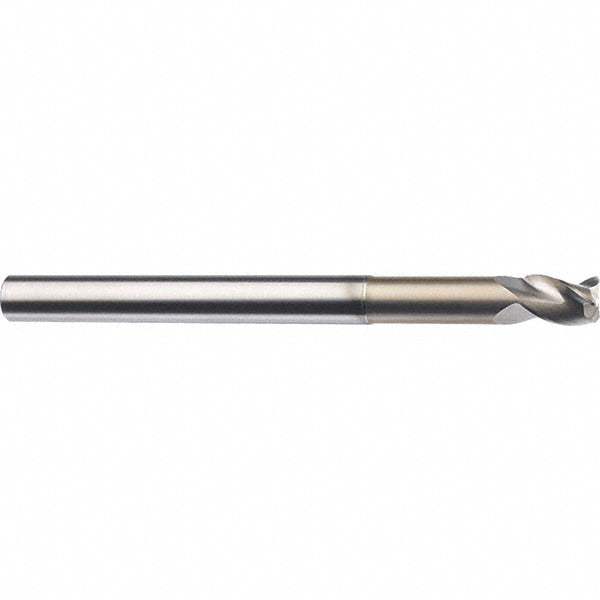

1/4" 3-Flute Solid Carbide Corner Radius End Mill, TIB2 - SGS 32822
MFR# 32822Series 43LC
$67.26List $86.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingTIB2
Description
The SGS 32822 is a 1/4 3-flute Solid Carbide (Micrograin) corner radius end mill with a TIB2 finish for longer tool life. Suited for non-ferrous metal. 3/8 length of cut, 4 overall length. Series 43LC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTIB2
Coolant throughNo
Corner radius0.0300
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in3/8
Length typeShort
Material applicationNon-Ferrous Metal
Material gradeMicrograin
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance-0.0004 to 0.0000 in
Neck diameter0.2300
Number of flutes3
Overall length in4
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/8
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
