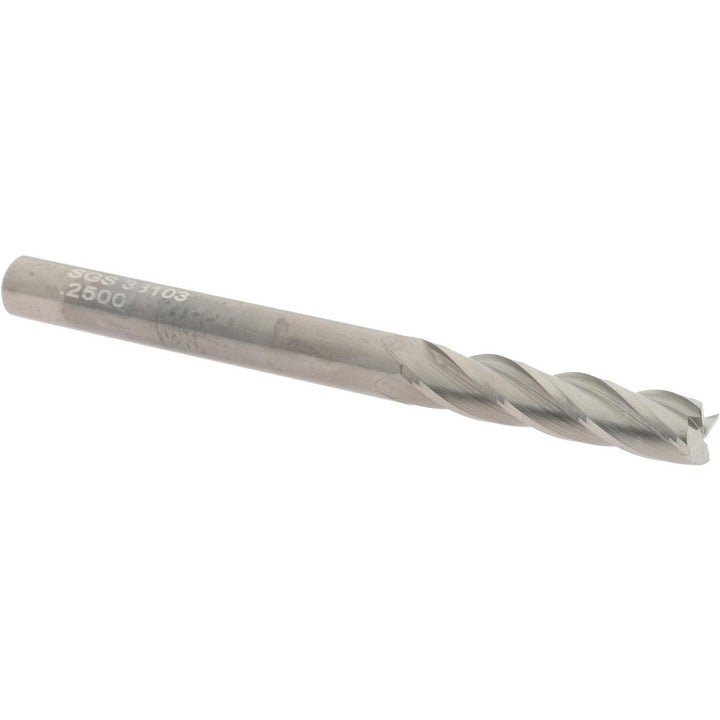

1/4" 4-Flute Solid Carbide Square End Mill - SGS 33103

SGS

1/4" 4-Flute Solid Carbide Square End Mill - SGS 33103

MFR# 33103Series 1L

$33.26List $42.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide

Description

The SGS 33103 is a 1/4 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3 overall length. Series 1L.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeLong
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
