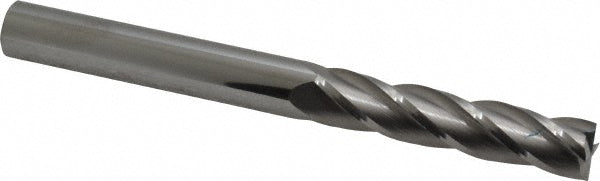

7/16" 4-Flute Solid Carbide Square End Mill - SGS 33109

SGS

7/16" 4-Flute Solid Carbide Square End Mill - SGS 33109

MFR# 33109Series 1L

$85.00List $109.01 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide

Description

The SGS 33109 is a 7/16 4-flute Solid Carbide (Micrograin) square end mill. 2 length of cut, 4-1/2 overall length. Series 1L.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeLong
Material gradeMicrograin
Mill diameter in7/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in4-1/2
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
