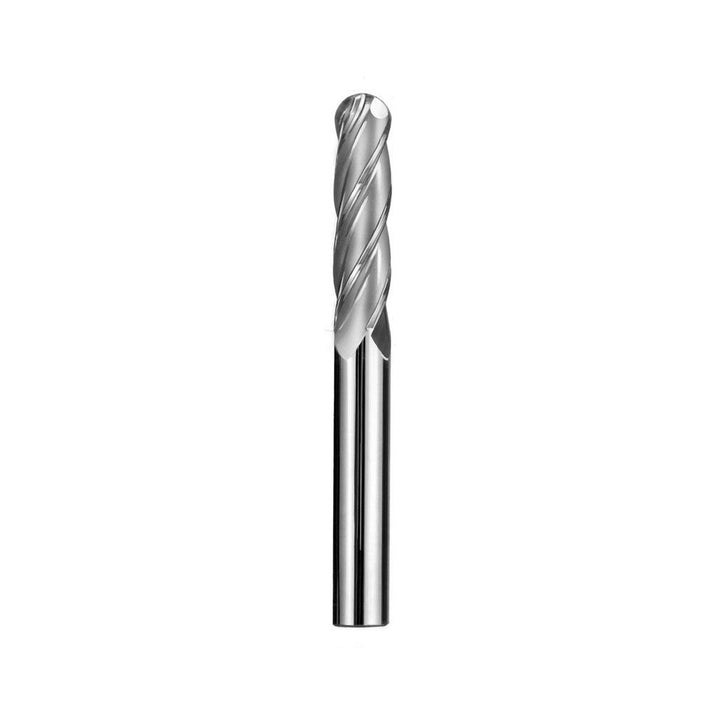

1/2" 4-Flute Solid Carbide Ball End Mill - SGS 33112

SGS

1/2" 4-Flute Solid Carbide Ball End Mill - SGS 33112

MFR# 33112Series 1LB

$96.59List $123.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The SGS 33112 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill. 2 length of cut, 4-1/2 overall length. Series 1LB.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000 to -0.002 in
Number of flutes4
Overall length in4-1/2
Shank diameter in1/2
Shank diameter tolerance+0.00000 to -0.00043 in
Single or double endSingle
Variable helixNo
Variable indexYes
