SGS

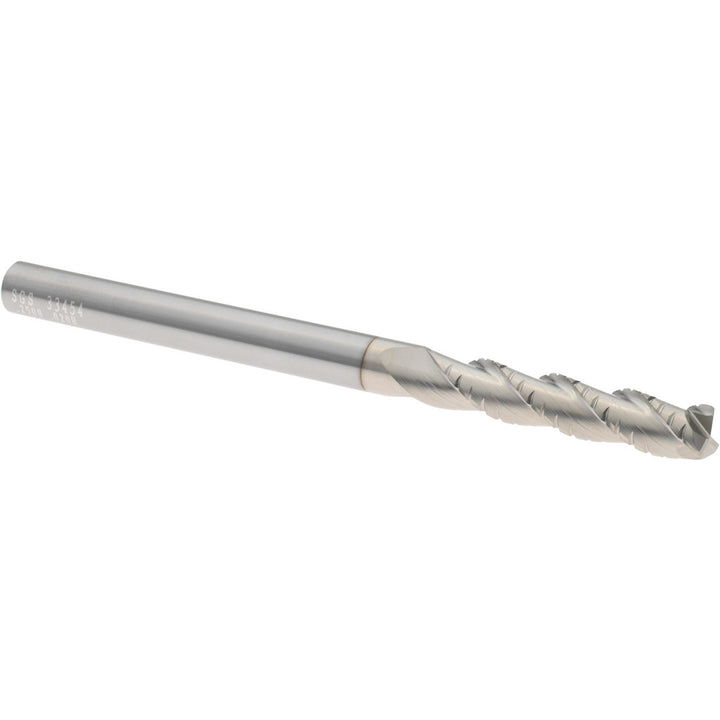

0.25" 3-Flute Solid Carbide Roughing End Mill, TiB2 - SGS 33454
MFR# 33454Series 43
$72.40List $92.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 33454 is a 0.25 3-flute Solid Carbide roughing end mill with a Titanium Diboride finish for longer tool life. Series 43.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishTiB2
Corner radius0.0200
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2500
Maximum helix angle38
Mill diameter0.25
Mill diameter frac in1/4
Mill diameter tolerance+0.000000 to -0.000350 in
Number of flutes3
PitchCoarse
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
