SGS

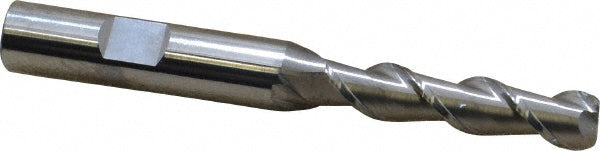

5/16" 2-Flute Solid Carbide Square End Mill - SGS 34507

MFR# 34507Series 44

$112.82List $144.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

Description

The SGS 34507 is a 5/16 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1-3/8 length of cut, 3-1/8 overall length. Series 44.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in1-3/8

Length typeStub

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.00000/-0.00035 in

Number of flutes2

Overall length in3-1/8

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeWeldon Flat

Variable helixNo

Variable indexNo
