3/8" 2-Flute Solid Carbide Square End Mill - SGS 34641

SGS

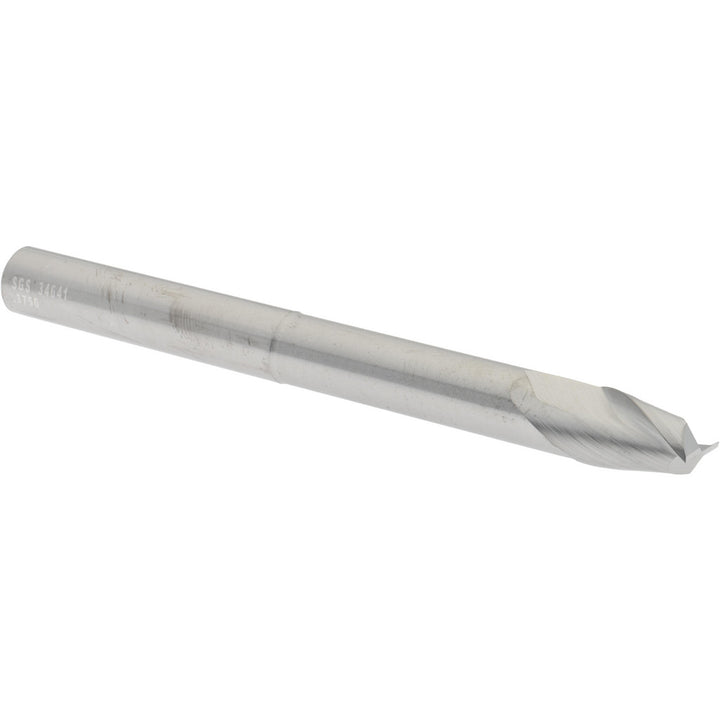

3/8" 2-Flute Solid Carbide Square End Mill - SGS 34641

MFR# 34641Series 47E

$96.24List $123.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide

Description

The SGS 34641 is a 3/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1/2 length of cut, 4 overall length. Series 47E.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance-0.0001/-0.0004 in
Number of flutes2
Overall length in4
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/8
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
