3/8" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34664

SGS

3/8" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34664

MFR# 34664Series 47

$75.44List $95.07 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide
CoatingTiB2

Description

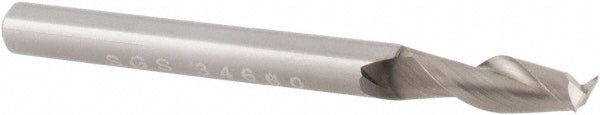

The SGS 34664 is a 3/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 47.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance-0.0001/-0.0004 in
Number of flutes2
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
