SGS

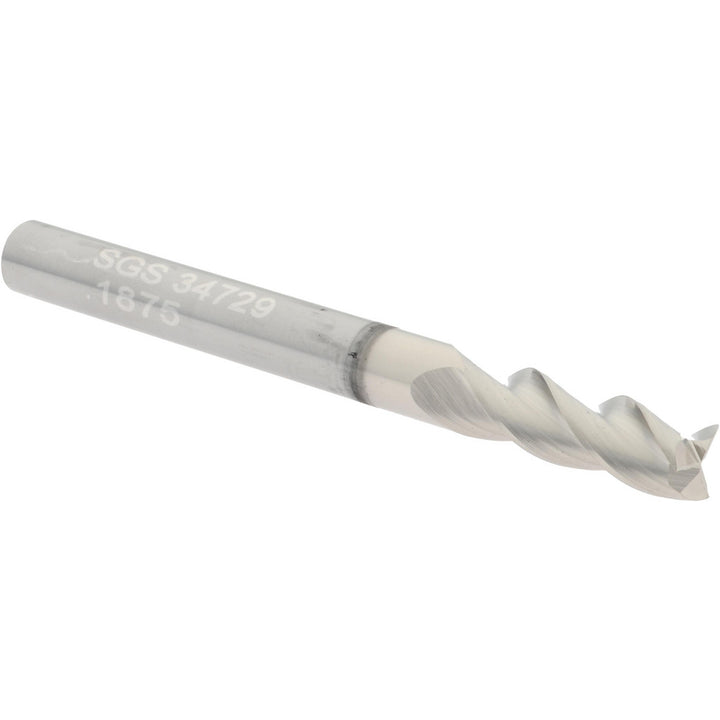

3/16" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 34729

MFR# 34729Series 43

$32.31List $41.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 34729 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 9/16 length of cut, 2 overall length. Series 43.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.00000/-0.00032 in

Number of flutes3

Overall length in2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
