1/4" 6-Flute Solid Carbide Square End Mill, TiN - SGS 35100

SGS

1/4" 6-Flute Solid Carbide Square End Mill, TiN - SGS 35100

MFR# 35100Series 51

$40.80List $52.33 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes6
MaterialSolid Carbide
CoatingTiN

Description

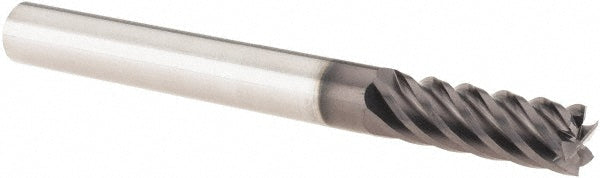

The SGS 35100 is a 1/4 6-flute Solid Carbide square end mill. 3/4 length of cut, 2-1/2 overall length. Series 51.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle41
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes6
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
