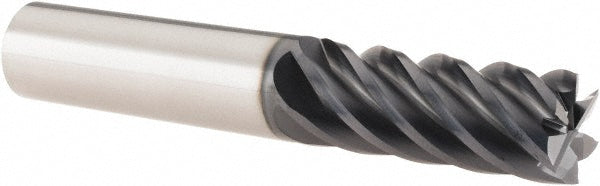

1/2" 6-Flute Solid Carbide Square End Mill, TiN - SGS 35102

SGS

1/2" 6-Flute Solid Carbide Square End Mill, TiN - SGS 35102

MFR# 35102Series 51

$94.05List $120.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingTiN

Description

The SGS 35102 is a 1/2 6-flute Solid Carbide square end mill. 1-1/4 length of cut, 3 overall length. Series 51.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle41
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.002 in
Number of flutes6
Overall length in3
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
