Supermill

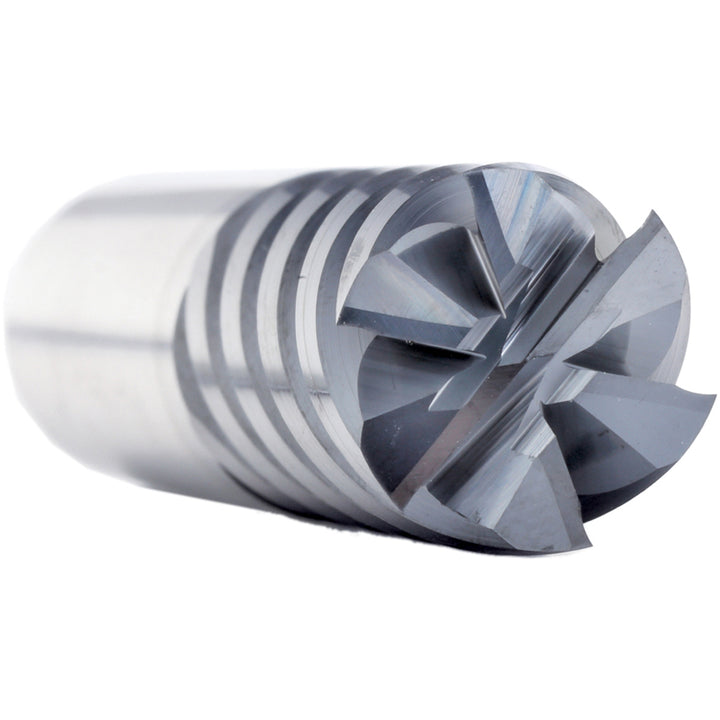

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5252293

MFR# 5252293Cat# SM6FSeries SM6F

$87.48List $112.20 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5252293 is a 1/2 6-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3 overall length. Series SM6F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/4

Length typeStandard

Manufacturers catalog numberSM6F

Material applicationSteel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/2

Number of flutes6

Overall length in3

PitchClose

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium

Shank diameter in1/2

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
