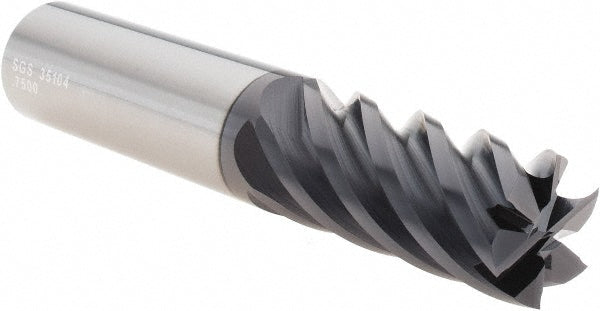

3/4" 6-Flute Solid Carbide Square End Mill, Ti-NAMITE-X - SGS 35104

MFR# 35104Series 51

$251.68List $322.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingTi-NAMITE-X

Description

The SGS 35104 is a 3/4 6-flute Solid Carbide (Micrograin) square end mill with a Ti-NAMITE-X finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-5/8 length of cut, 4 overall length. Series 51.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTi-NAMITE-X

Coating finish familyTi-NAMITE-X

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle41

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes6

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
