SGS

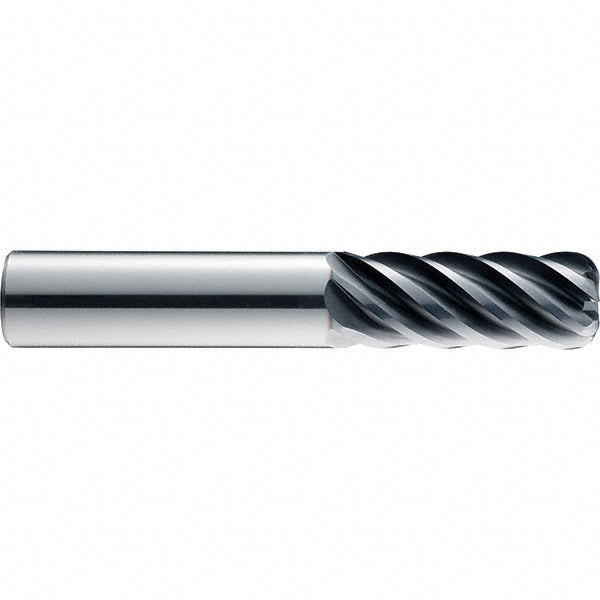

5/8in" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35155

MFR# 35155Series 51CR

$198.98List $255.21 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8in

Flutes6

MaterialSolid Carbide

CoatingTX

Description

The SGS 35155 is a 5/8in 6-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-5/8in length of cut, 3-1/2 overall length. Series 51CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.1900

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-5/8in

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeFinishing

Mill diameter in5/8in

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in3-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
