SGS

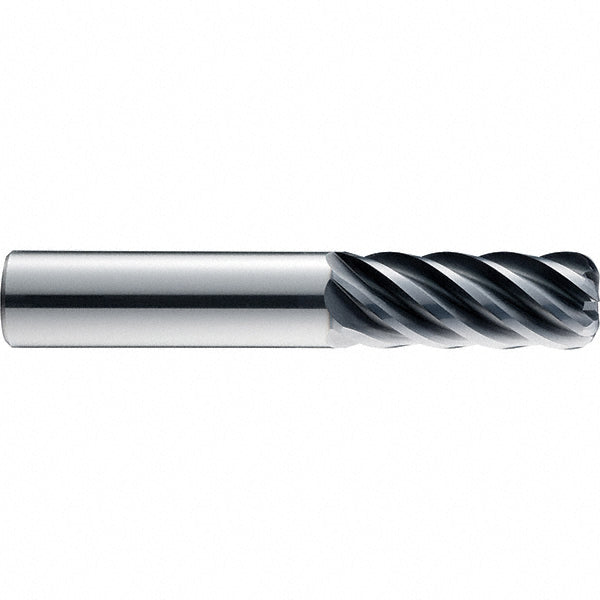

1/2" 6-Flute Solid Carbide Corner Radius End Mill, TX - SGS 35182

MFR# 35182Series 51CR

$149.79List $192.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingTX

Description

The SGS 35182 is a 1/2 6-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8 length of cut, 4 overall length. Series 51CR.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0600

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance-0.0020 to 0.0000 in

Neck diameter0.4750

Number of flutes6

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in2-1/4

Secondary workpiece materialHard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
