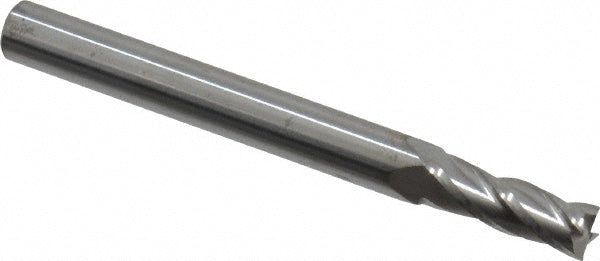

7/32" 4-Flute Solid Carbide Square End Mill - SGS 35480

SGS

7/32" 4-Flute Solid Carbide Square End Mill - SGS 35480

MFR# 35480Series 54

$27.50List $35.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/32
Flutes4
MaterialSolid Carbide

Description

The SGS 35480 is a 7/32 4-flute Solid Carbide square end mill. 5/8 length of cut, 2-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Mill diameter in7/32
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Variable helixNo
Variable indexNo
