5/16" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35508

SGS

5/16" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 35508

MFR# SGS-35508Series 54

$30.01List $38.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

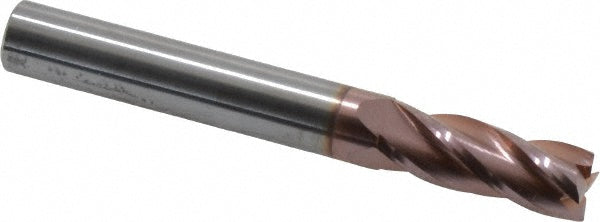

The SGS 35508 is a 5/16 4-flute Solid Carbide square end mill. Suited for non-ferrous metal. 13/16 length of cut, 2-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
