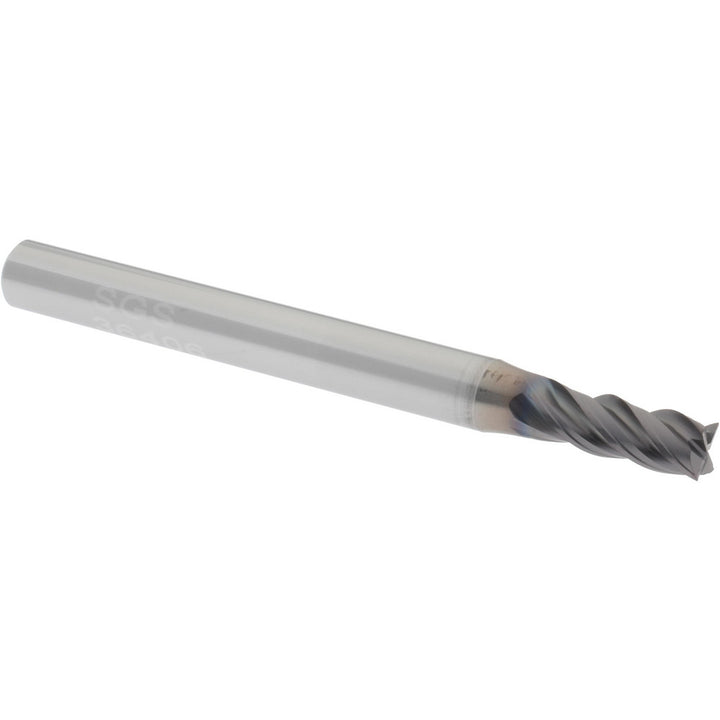

5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36406

SGS

5/32" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36406

MFR# 36406Series Z1

$30.62List $39.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36406 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill. 7/16 length of cut, 2 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in7/16
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/32
Mill diameter tolerance+0.0000/-0.0012 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
