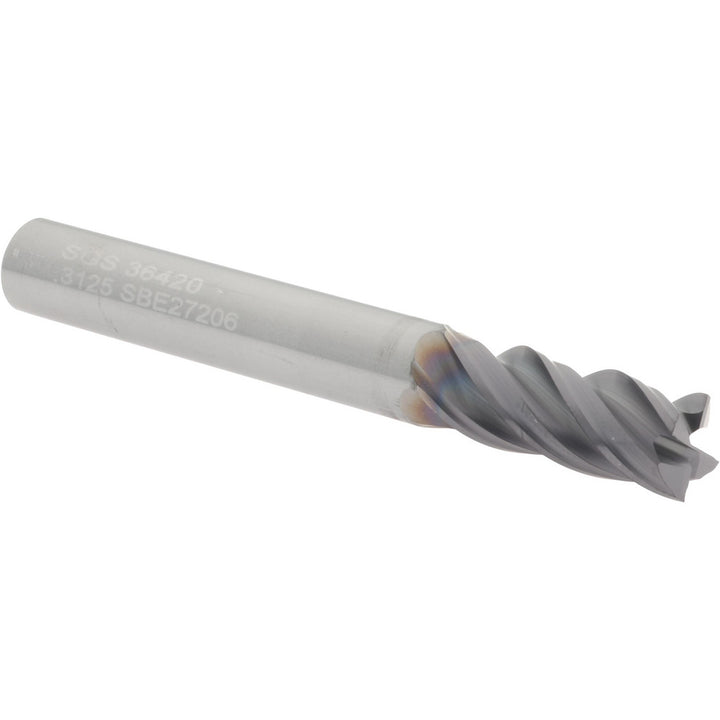

5/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36420

MFR# 36420Series Z1

$48.38List $62.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36420 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 13/16 length of cut, 2-1/2 overall length. Series Z1.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in5/16

Mill diameter tolerance+0.0000/-0.0016 in

Number of flutes4

Overall length in2-1/2

Shank diameter in5/16

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
