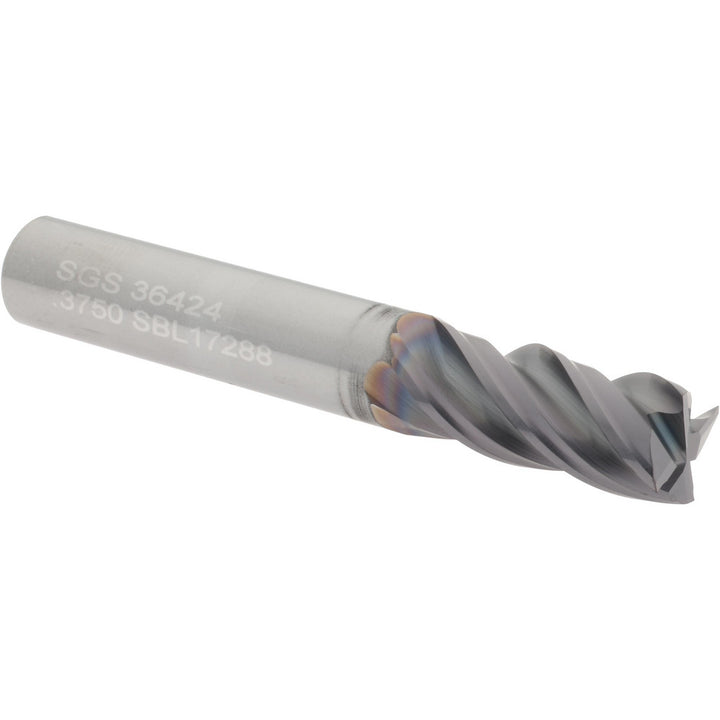

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36424

MFR# 36424Series Z1

$58.67List $75.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36424 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 7/8 length of cut, 2-1/2 overall length. Series Z1.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in7/8

Length of cut range0.8000 - 1.0000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0016 in

Number of flutes4

Overall length in2-1/2

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
