9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36436

SGS

9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36436

MFR# 36436Series Z1

$169.13List $216.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

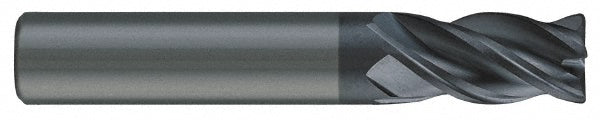

The SGS 36436 is a 9/16 4-flute Solid Carbide (Micrograin) square end mill. 1-1/8 length of cut, 3-1/2 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in9/16
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3-1/2
Shank diameter in9/16
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
