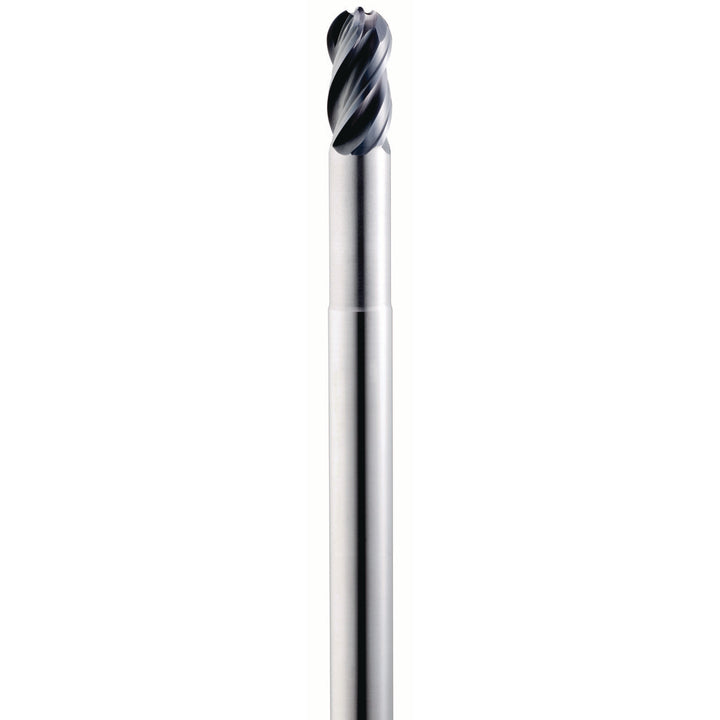

5/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36482

SGS

5/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36482

MFR# 36482Series Z1PLB

$67.03List $85.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36482 is a 5/16 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 13/16 length of cut, 4 overall length. Series Z1PLB.

Specifications

ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angleVariable
Helix styleVariable
Length of cut in13/16
Length typeLong
Material gradeMicrograin
Material removal typeFinishing
Mill diameter in5/16
Mill diameter tolerance+0.0000 to -0.0016 in
Neck diameter0.2930
Neck length0.8120
Number of flutes4
Overall length in4
Reach length in1-5/8
Shank diameter in5/16
Shank diameter tolerance+0.00000 to -0.00035 in
Single or double endSingle
Variable helixYes
Variable indexYes
