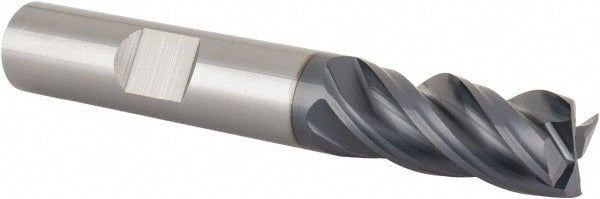

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36530

SGS

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36530

MFR# 36530Series Z1

$58.26List $74.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36530 is a 3/8 4-flute Solid Carbide square end mill. 7/8 length of cut, 2-1/2 overall length. Series Z1.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Length typeRegular
Mill diameter in3/8
Mill diameter tolerance+0.0000/-0.0016 in
Number of flutes4
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeWeldon Flat
Variable helixYes
Variable indexYes
