SGS

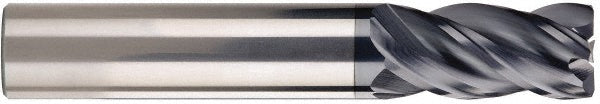

9/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36535

MFR# 36535Series Z1

$168.16List $215.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36535 is a 9/16 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1-1/8 length of cut, 3-1/2 overall length. Series Z1.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Length typeRegular

Material gradeMicrograin

Mill diameter in9/16

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes4

Overall length in3-1/2

Shank diameter in9/16

Shank diameter tolerance+0.00000/-0.00043 in

Shank typeWeldon Flat

Variable helixYes

Variable indexYes
