SGS

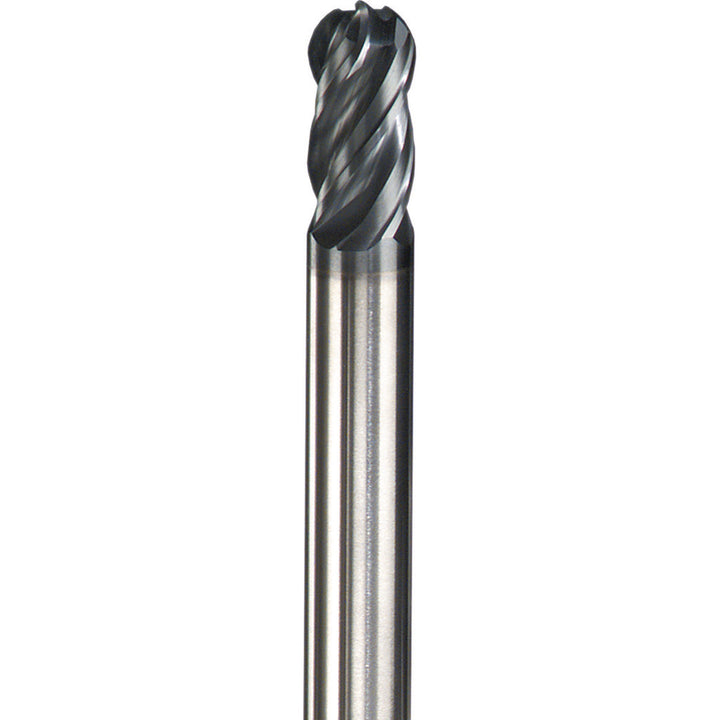

1/2" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36591

MFR# 36591Series Z1B

$121.43List $155.74 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 36591 is a 1/2 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut, 3-1/4 overall length. Series Z1B.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1-1/4

Length typeRegular

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3-1/4

Shank diameter in1/2

Shank diameter tolerance+0.00000/-0.00043 in

Single or double endSingle

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
