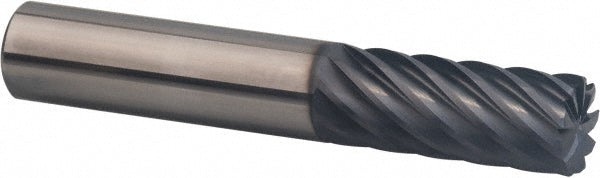

1/2" 9-Flute Solid Carbide Square End Mill, AlTiN - SGS 36623

SGS

1/2" 9-Flute Solid Carbide Square End Mill, AlTiN - SGS 36623

MFR# 36623Series 66

$128.10List $164.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes9
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36623 is a 1/2 9-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3 overall length. Series 66.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes9
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
