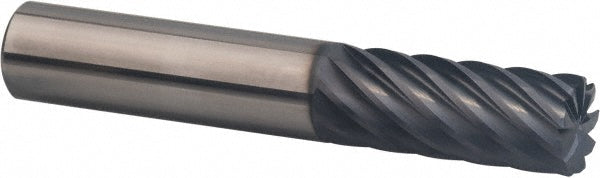

5/8" 9-Flute Solid Carbide Square End Mill, AlTiN - SGS 36624

SGS

5/8" 9-Flute Solid Carbide Square End Mill, AlTiN - SGS 36624

MFR# 36624Series 66

$268.77List $338.71 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes9
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36624 is a 5/8 9-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 3-1/2 overall length. Series 66.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes9
Overall length in3-1/2
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
