SGS
3/4" 11-Flute Solid Carbide Square End Mill, AlTiN - SGS 36625
MFR# 36625Series 66
$326.74List $419.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes11
MaterialSolid Carbide
CoatingAlTiN
Description

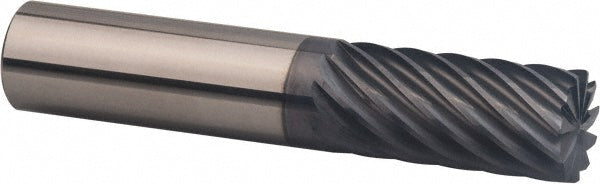

The SGS 36625 is a 3/4 11-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series 66.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes11
Overall length in4
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
