SGS

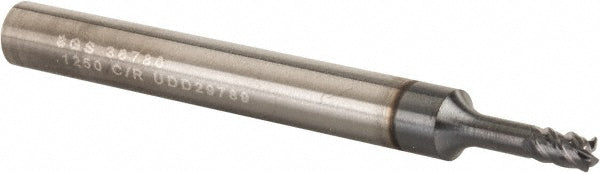

1/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36780
MFR# 36780Series ZD1C
$28.66List $36.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingTX
Description
The SGS 36780 is a 1/8 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. 5/32 length of cut, 2-1/2 overall length. Series ZD1C.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0100
Corner radius tolerance-0.0020 to 0.0000 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in5/32
Length typeShort
Material applicationCast Iron; Hard Material; Steel
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance-0.0012 to 0.0000 in
Neck diameter0.1100
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialCast Iron; Hard Material
Reach length in1/2
Secondary workpiece materialSteel
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
