Titan USA

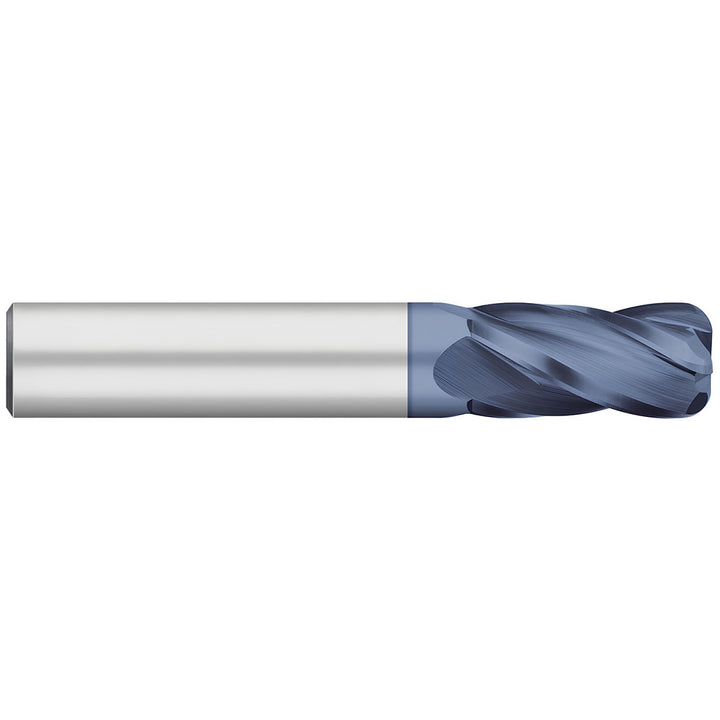

1/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC73904

MFR# TC73904Series TC

$15.53List $19.91 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC73904 is a 1/8 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1/4 length of cut, 1-1/2 overall length. Series TC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut in1/4

Length typeStub

Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes4

Overall length in1-1/2

PitchNormal

Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron

Reach length in1/4

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
