SGS

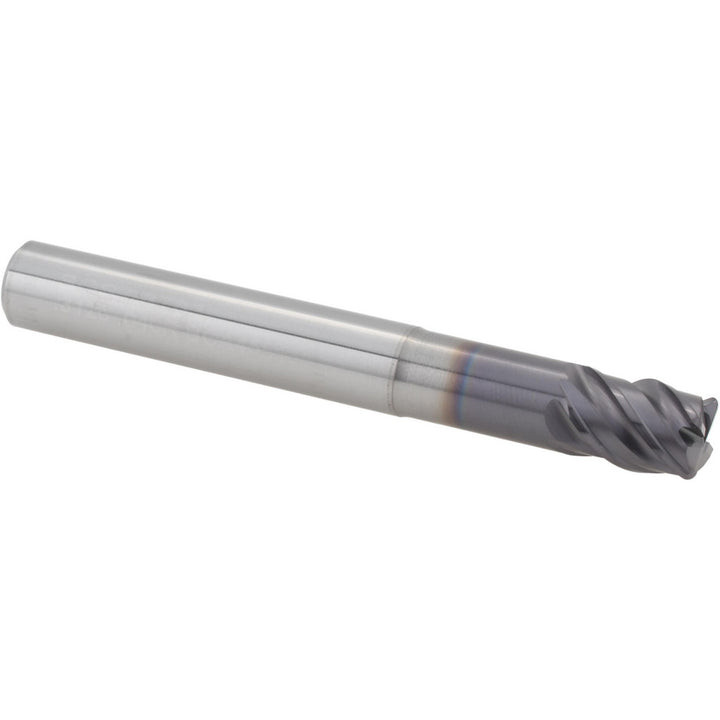

5/16" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36783

MFR# 36783Series ZD1C

$58.22List $74.66 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 36783 is a 5/16 4-flute Solid Carbide corner radius end mill with a TX finish for longer tool life. Suited for cast iron, hard material. 13/32 length of cut, 2-1/2 overall length. Series ZD1C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0400

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in13/32

Length typeShort

Material applicationCast Iron; Hard Material; Steel

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance-0.0016/0.0000 in

Neck diameter0.2970

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialCast Iron; Hard Material

Reach length in1

Secondary workpiece materialSteel

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
