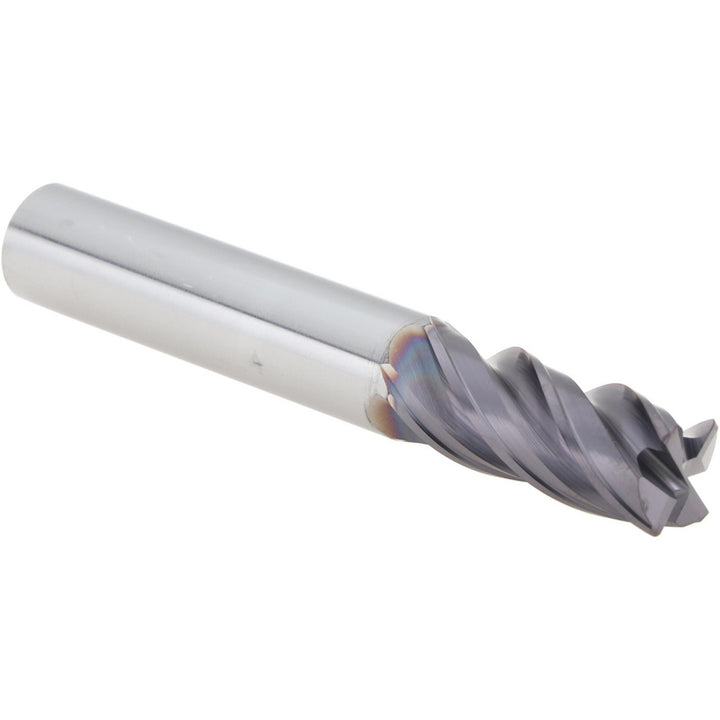

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36856

SGS

3/8" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36856

MFR# 36856Series ZPCR

$61.34List $78.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingTX

Description

The SGS 36856 is a 3/8 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 7/8 length of cut, 2-1/2 overall length. Series ZPCR.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTX
Coolant throughNo
Corner radius0.0200
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in7/8
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance-0.0016/0.0000 in
Number of flutes4
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Secondary workpiece materialHard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
