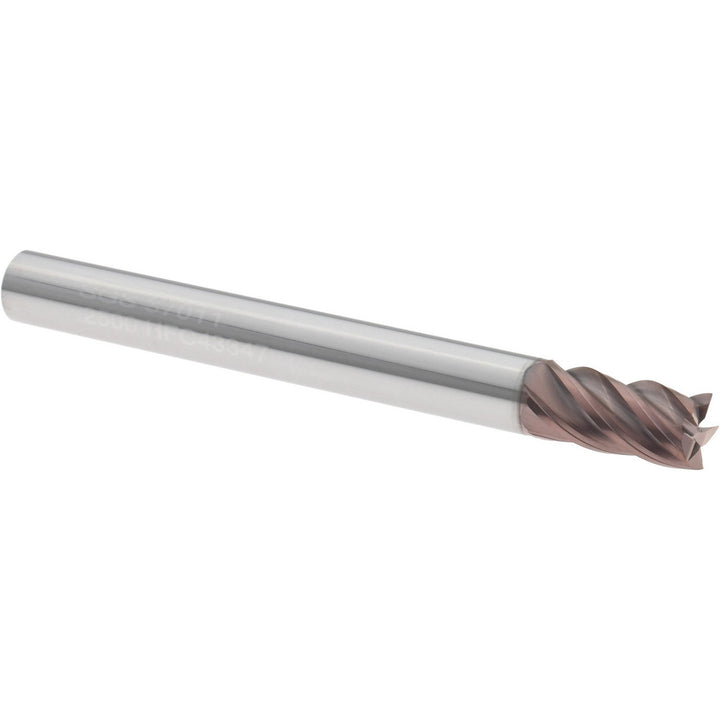

0.25" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37011

SGS

0.25" 5-Flute Solid Carbide Roughing End Mill, TiN - SGS 37011

MFR# 37011Series Z5

$41.66List $53.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiN

Description

The SGS 37011 is a 0.25 5-flute Solid Carbide (Micrograin) roughing end mill with a TiN finish for longer tool life. Series Z5.

Specifications

CentercuttingNo
Coating finishTiN
Coolant throughYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.5000
Length typeRegular
Material gradeMicrograin
Maximum helix angle37
Mill diameter0.25
Mill diameter frac in1/4
Mill diameter tolerance+0.0000 to -0.0012 in
Number of flutes5
PitchVariable
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
