SGS

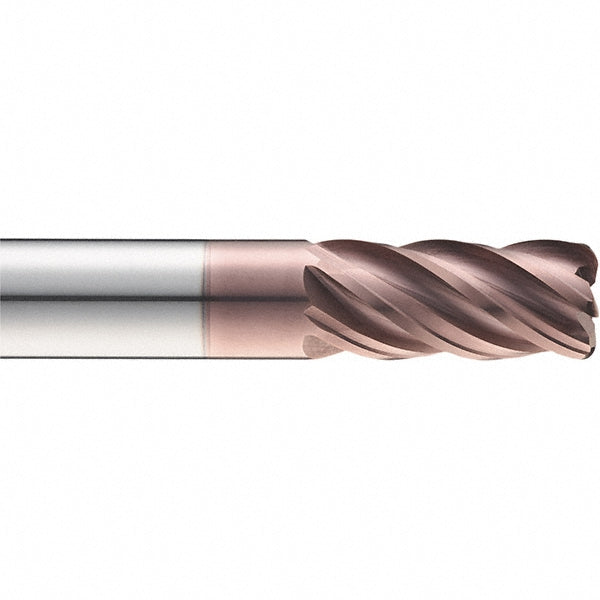

7/16" 5-Flute Solid Carbide Corner Radius End Mill, TM - SGS 37160

MFR# 37160Series Z5C

$91.24List $117.02 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes5

MaterialSolid Carbide

CoatingTM

Description

The SGS 37160 is a 7/16 5-flute Solid Carbide corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 5/8 length of cut, 2-1/2 overall length. Series Z5C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTM

Coolant throughNo

Corner radius0.0150

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material removal typeRoughing & Finishing

Mill diameter in7/16

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes5

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in7/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
