Supermill

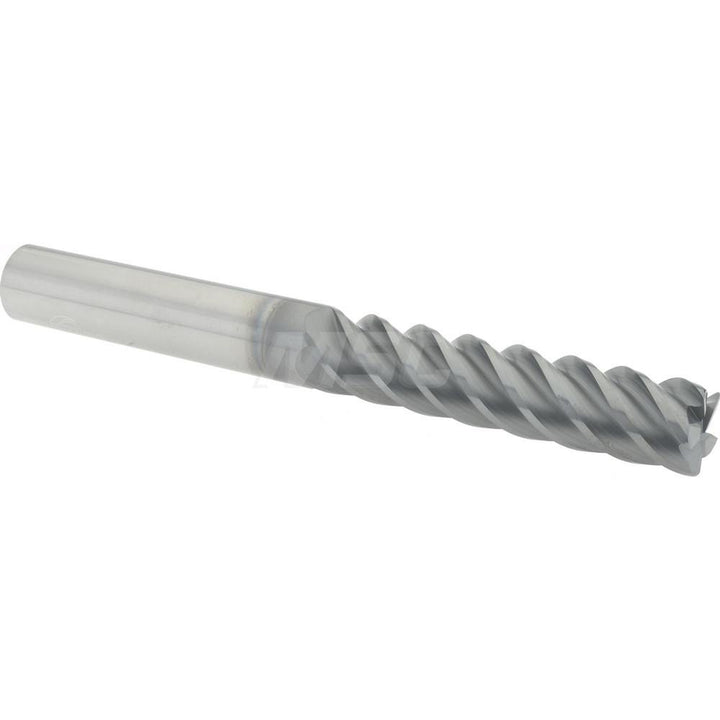

7/16" 5-Flute Solid Carbide Corner Radius End Mill, AlCrN - Supermill 5251925

MFR# 5251925Cat# 15079Series SM5F

$135.32List $173.55 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes5

MaterialSolid Carbide

CoatingAlCrN

Description

The Supermill 5251925 is a 7/16 5-flute Solid Carbide (Micrograin) corner radius end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2 length of cut, 4 overall length. Series SM5F.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlCrN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in2

Length typeExtra Long

Manufacturers catalog number15079

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in7/16

Number of flutes5

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in7/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
