SGS

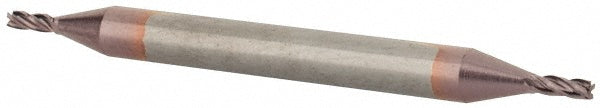

3/64" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 39603
MFR# 39603Series 14
$36.31List $45.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The SGS 39603 is a 3/64 4-flute Solid Carbide (Micrograin) square end mill. 3/32 length of cut, 1-1/2 overall length. Series 14.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/32
Length typeStub
Material gradeMicrograin
Mill diameter in3/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
