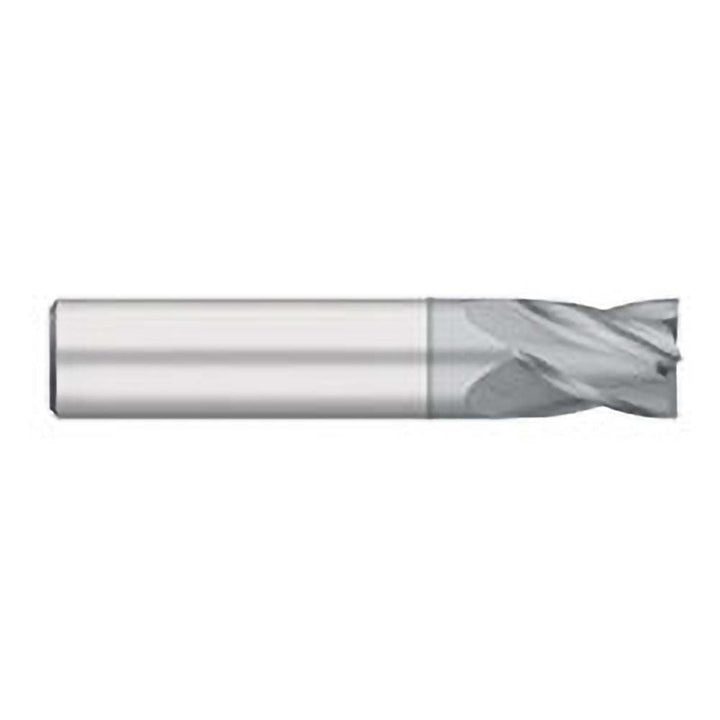

5/32" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90910
MFR# TC90910
$13.68List $16.73
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingTiCN
Description
The Titan USA TC90910 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 5/16 length of cut, 2 overall length.
Specifications
CentercuttingYes
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in5/16
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in5/32
Number of flutes4
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
