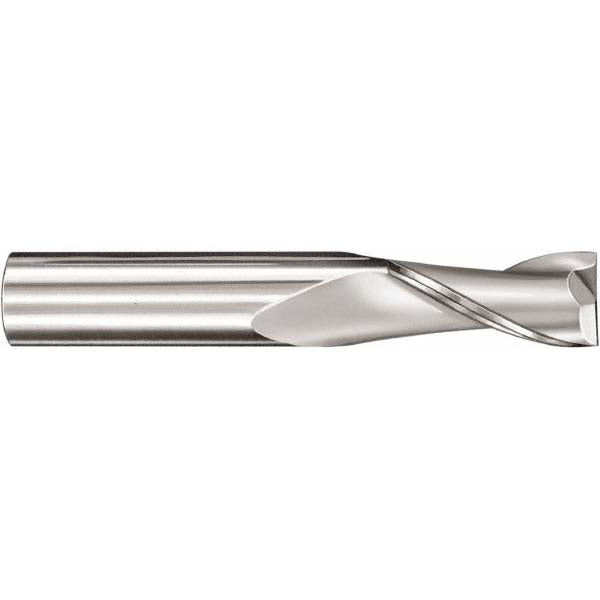

0.1969" 2-Flute Solid Carbide Square End Mill - SGS 40337

MFR# 40337Series 3M

$20.68List $26.52 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The SGS 40337 is a 0.1969 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 0.6299 length of cut. Series 3M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.6299

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter0.1969

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes2

Overall length (mm)50.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter0.2362

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
