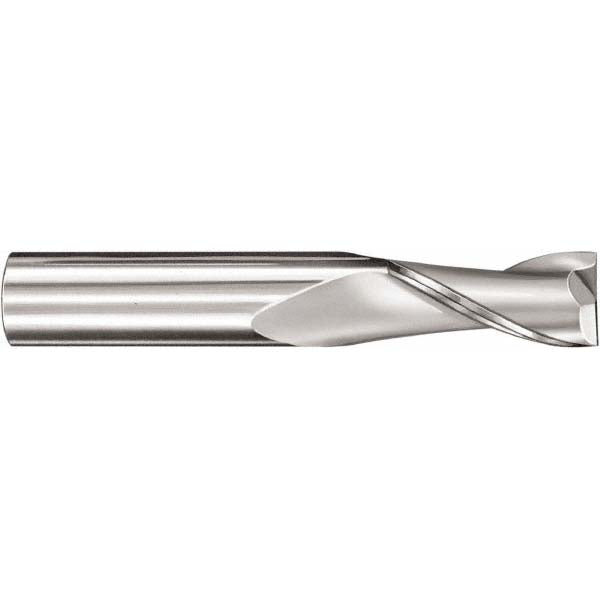

0.1969" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 48679

SGS

0.1969" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 48679

MFR# 48679Series 3M

$23.03List $29.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 48679 is a 0.1969 2-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.6299 length of cut. Series 3M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.6299
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)50
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
