SGS

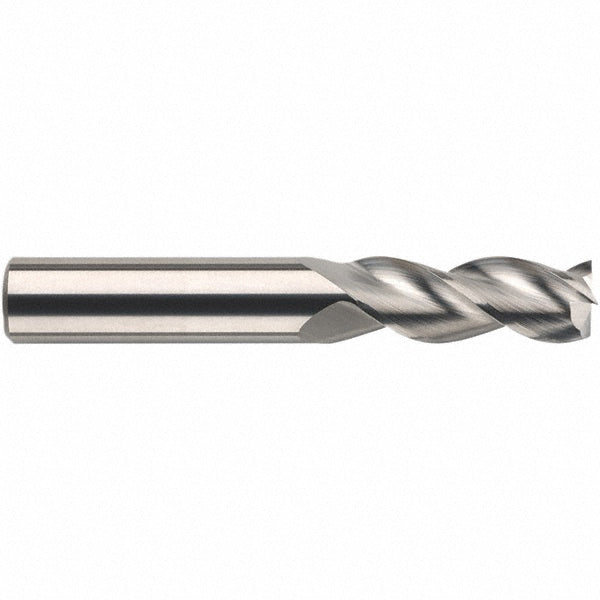

0.2362" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 42706

MFR# 42706Series 43MS

$43.48List $55.77 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The SGS 42706 is a 0.2362 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.3937 length of cut. Series 43MS.

Specifications

CentercuttingYes

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut0.3937

Length typeLong

Material gradeMicrograin

Mill diameter0.2362

Mill diameter tolerance+0.0000 to -0.0080 mm

Neck diameter (mm)5.49

Number of flutes3

Overall length (mm)75

Primary workpiece materialNon-Ferrous Metal

Shank diameter0.2362

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
