SGS

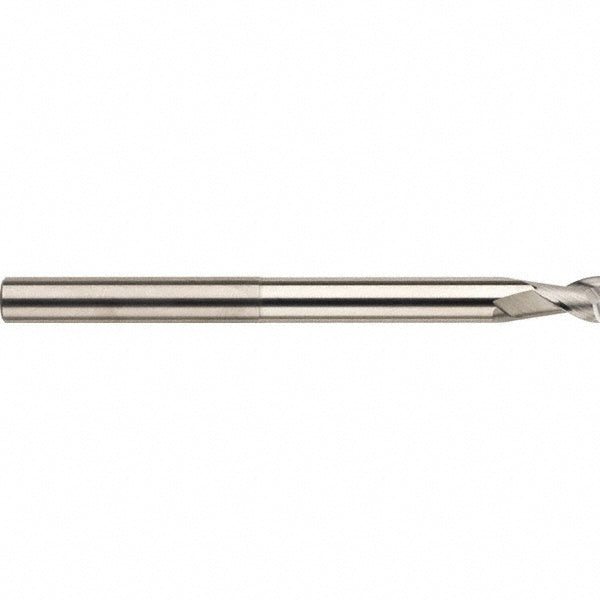

0.3150" 2-Flute Solid Carbide Square End Mill - SGS 44562
MFR# 44562Series 47ML
$95.41List $122.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 44562 is a 0.3150 2-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 0.4724 length of cut. Series 47ML.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeLong
Material gradeMicrograin
Mill diameter0.3150
Mill diameter tolerance+0.0025/-0.0100 mm
Neck length1.6535
Number of flutes2
Overall length (mm)100
Primary workpiece materialNon-Ferrous Metal
Reach length2.126
Shank diameter0.315
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
