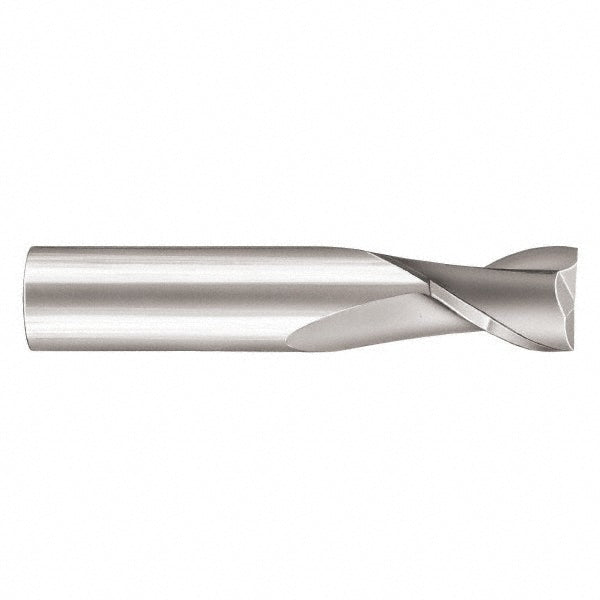

0.3150" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 49315

SGS

0.3150" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 49315

MFR# 49315Series 17

$33.41List $42.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 49315 is a 0.3150 2-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.472 length of cut. Series 17.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.472
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter0.3150
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)50
Shank diameter0.315
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
