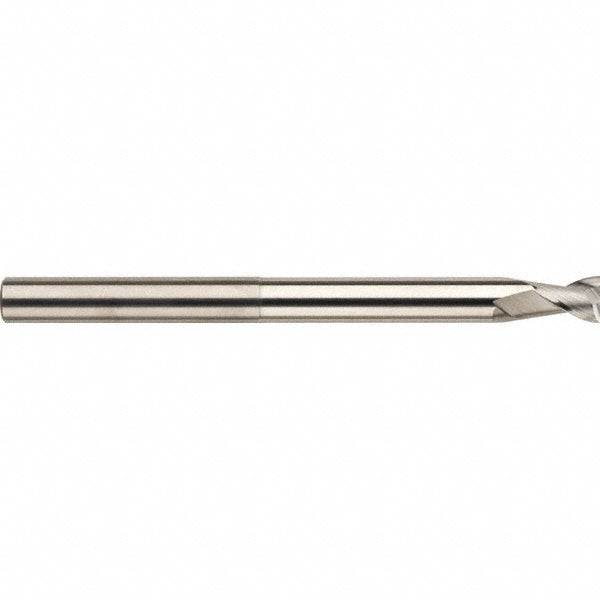

0.4724" 2-Flute Solid Carbide Square End Mill - SGS 44564

SGS

0.4724" 2-Flute Solid Carbide Square End Mill - SGS 44564

MFR# 44564Series 47ML

$159.39List $204.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The SGS 44564 is a 0.4724 2-flute Solid Carbide (Micrograin) square end mill. 0.6299 length of cut. Series 47ML.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut0.6299
Length of cut range0.6000 - 0.7000
Length typeLong
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.0025/-0.0100 mm
Neck length2.5197
Number of flutes2
Overall length (mm)150
Reach length3.1496
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Variable helixNo
Variable indexNo
