SGS

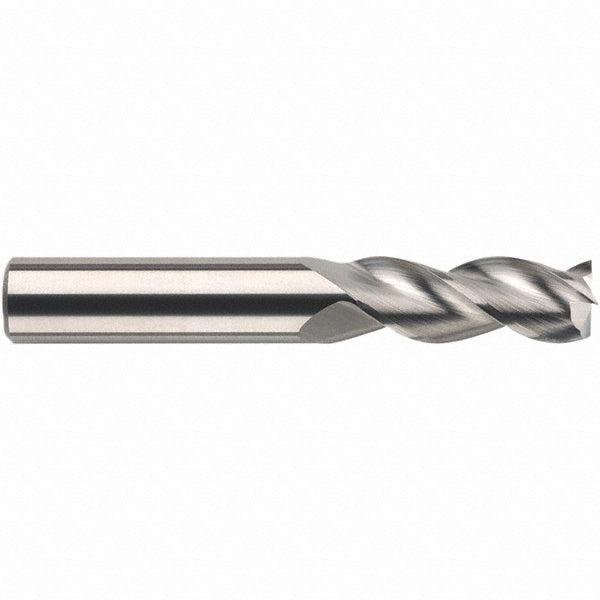

0.1969" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44892
MFR# 44892Series 43MS
$58.55List $73.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 44892 is a 0.1969 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. Series 43MS.
Specifications
CentercuttingYes
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut (mm)13
Length typeRegular
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.000 to -0.008 mm
Number of flutes3
Overall length (mm)57
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
