0.1181" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46357

SGS

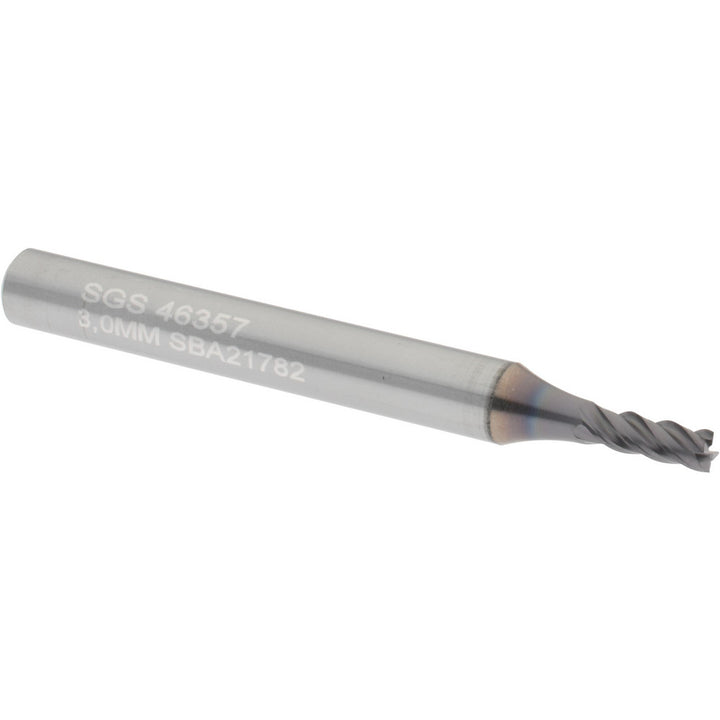

0.1181" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 46357

MFR# 46357Series Z1M

$21.37List $27.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 46357 is a 0.1181 4-flute Solid Carbide (Micrograin) square end mill. 0.3150 length of cut. Series Z1M.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.3150
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.030 mm
Number of flutes4
Overall length (mm)57.00
Shank diameter (mm)6.00
Shank diameter tolerance+0.000/-0.009 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
