SGS

0.3150" 7-Flute Solid Carbide Square End Mill, AlTiN - SGS 46621

MFR# 46621Series 66M

$59.32List $76.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes7

MaterialSolid Carbide

CoatingAlTiN

Description

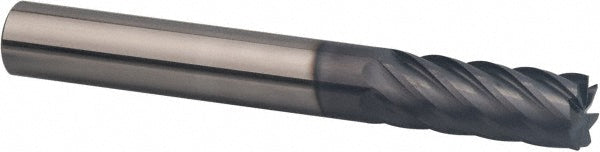

The SGS 46621 is a 0.3150 7-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.7874 length of cut. Series 66M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut0.7874

Length of cut range0.7000 - 0.8000

Length typeRegular

Material gradeMicrograin

Mill diameter0.3150

Mill diameter tolerance+0.000 to -0.050 mm

Number of flutes7

Overall length (mm)63

Shank diameter0.315

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
