SGS

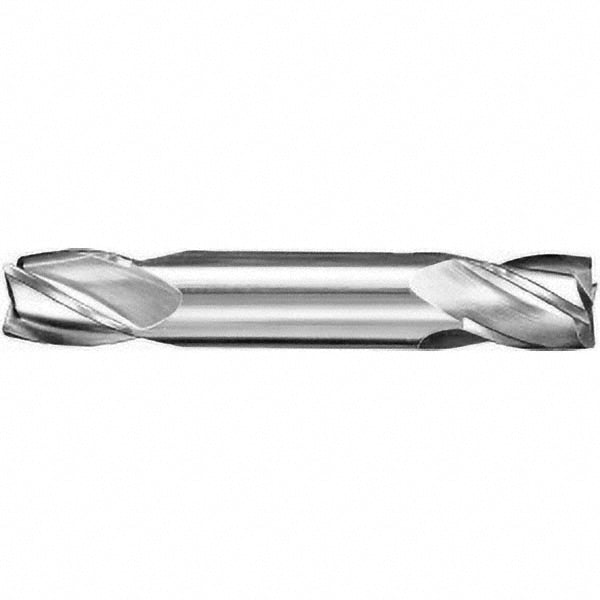

0.3150" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48895

MFR# 48895Series 14M

$54.01List $69.28 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 48895 is a 0.3150 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.4724 length of cut. Series 14M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.4724

Length of cut range0.3000 - 0.5000

Length typeStub

Material gradeMicrograin

Mill diameter0.3150

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)63

Shank diameter0.315

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
