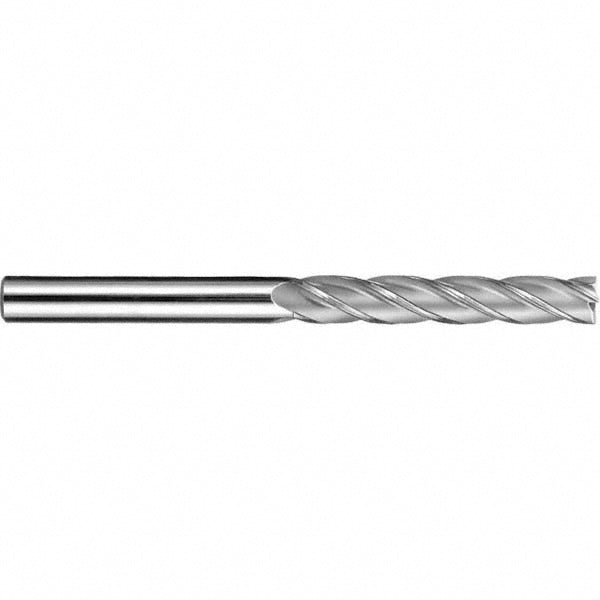

0.1969" 4-Flute Solid Carbide Square End Mill, TiN - SGS 49391

MFR# 49391Series 1XLM

$38.86List $49.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 49391 is a 0.1969 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.9843 length of cut. Series 1XLM.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.9843

Length of cut range0.8000 - 1.0000

Length typeExtra Long

Material gradeMicrograin

Mill diameter0.1969

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)75

Shank diameter0.1969

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
