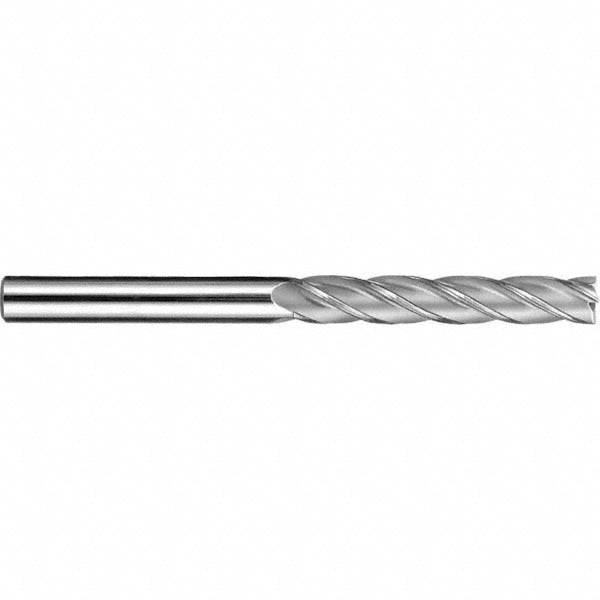

0.1969" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49417

SGS

0.1969" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 49417

MFR# 49417Series 1XLM

$38.86List $49.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 49417 is a 0.1969 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.9843 length of cut. Series 1XLM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.9843
Length of cut range0.8000 - 1.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes4
Overall length (mm)75
Shank diameter0.1969
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
