SGS

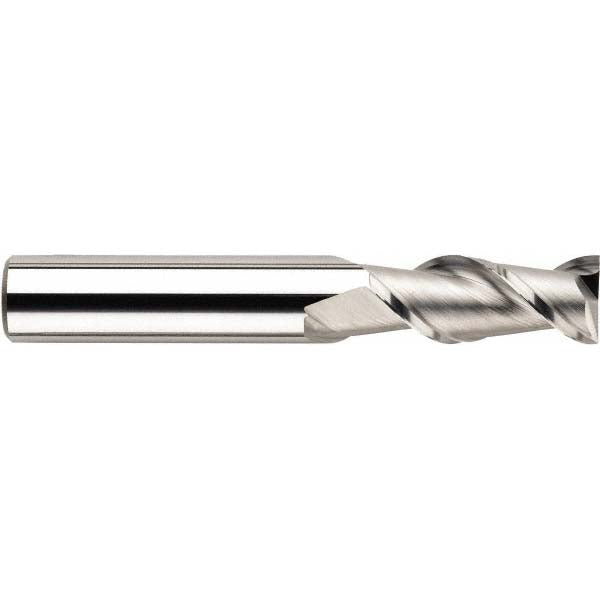

0.1969" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 49676
MFR# 49676Series 44M
$92.87List $119.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 49676 is a 0.1969 2-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 0.5118 length of cut. Series 44M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.5118
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1969
Mill diameter tolerance+0.000/-0.008 mm
Number of flutes2
Overall length (mm)57
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.2362
Shank diameter tolerance+0.000/-0.008 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
